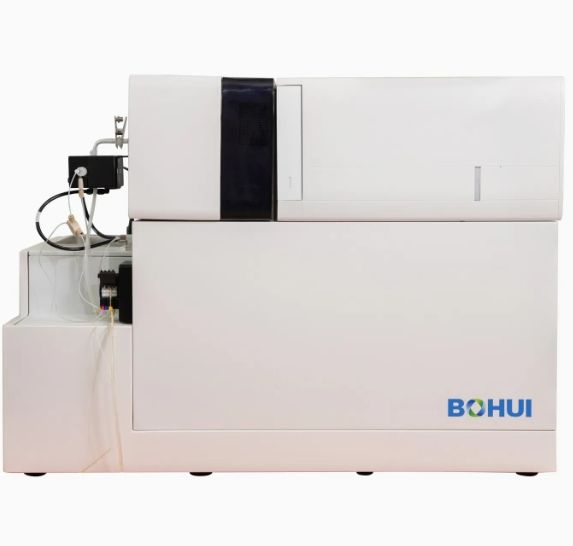

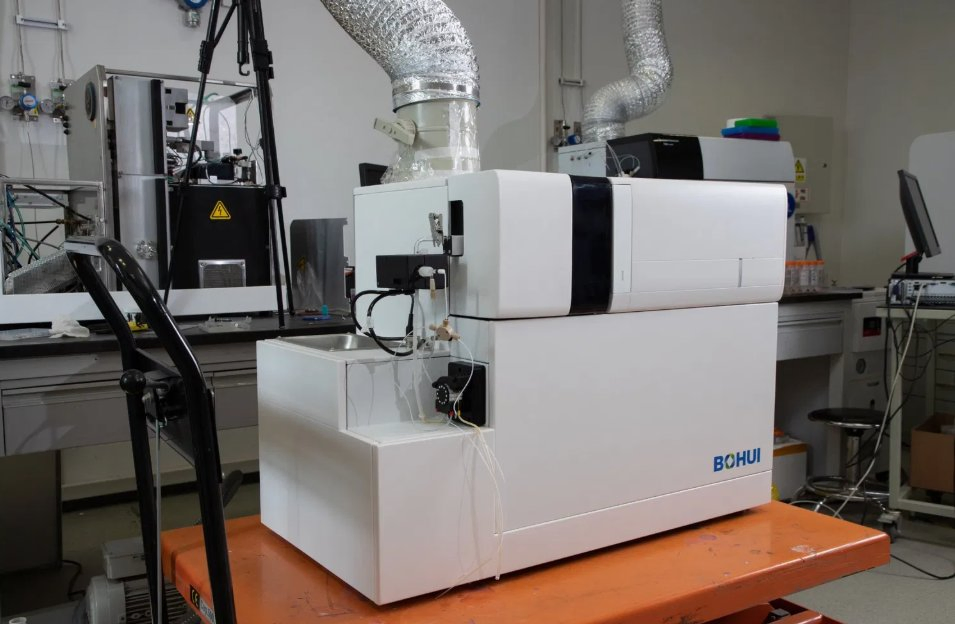

Top Selling Child Nutrition Heavy Metal Icp-Ms for Healthy Growth & Development

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Trace Element Analyzer

i

Basic Info.

Certification

CE, ISO13485, NMPA

Group

Full Range

Weight

115kg

Detection Limit

Ppt Level

Detection Deviation

≤5%

Real-Time Detection Time

1.5 Mins/Test

Specification

920mm x 660mm x 700mm

HS Code

9027300000

★

Product Description

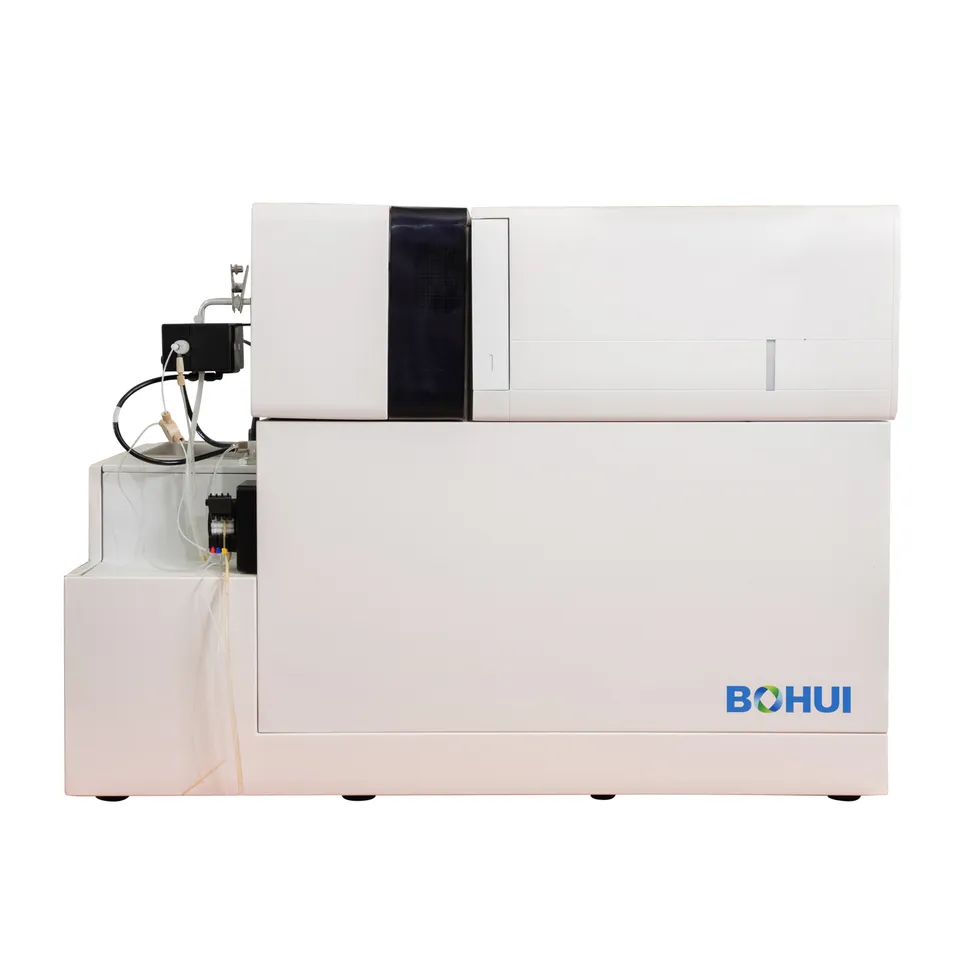

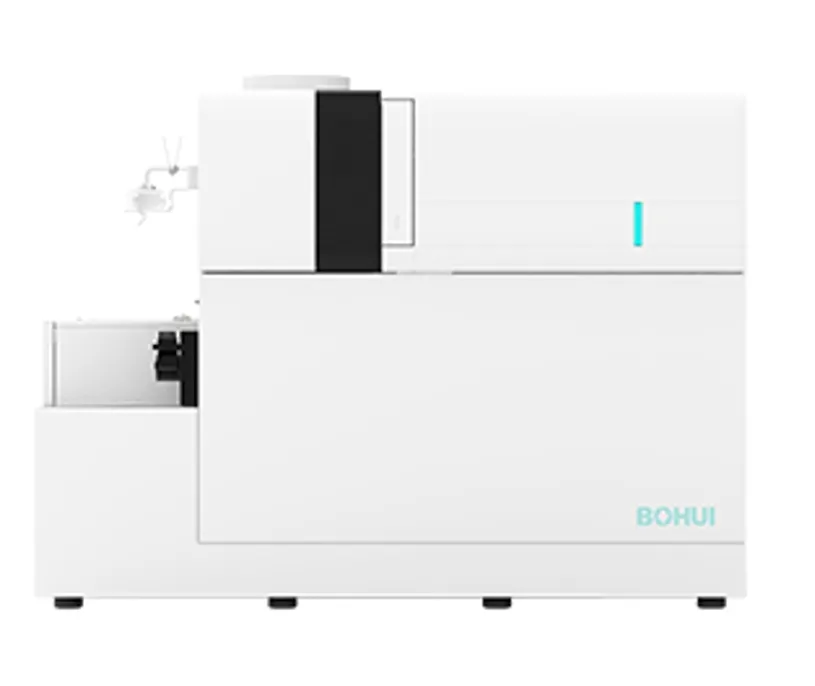

Principle of Detection

The trace element analyzer is based on Inductively Coupled Plasma Mass Spectrometry (ICP-MS) technology. It utilizes a high-frequency radio frequency (RF) signal to generate a high-temperature plasma that ionizes the analytes. The mass spectrometer then detects the ions' mass-to-charge ratio and intensity, enabling the quantification of elemental concentrations in the sample.

The working principle involves two main components:

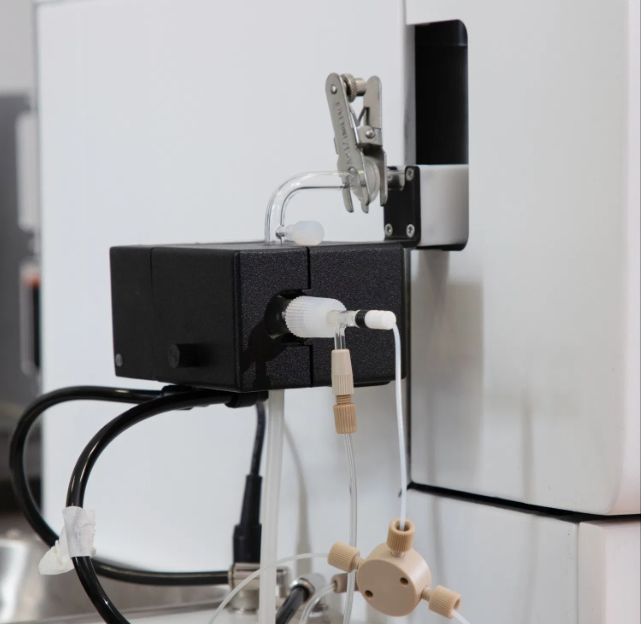

Plasma: Where the sample aerosol is atomized and ionized within the plasma.
Mass Spectrometer: Which separates ions according to their mass-to-charge (m/z) ratios, allowing identification and quantification of different elements.

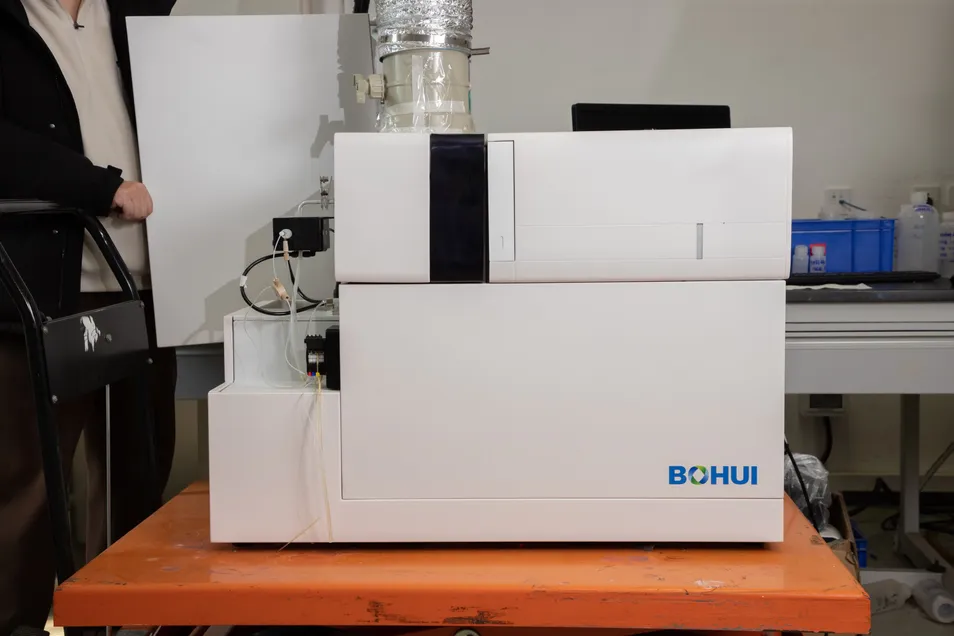

Product Overview

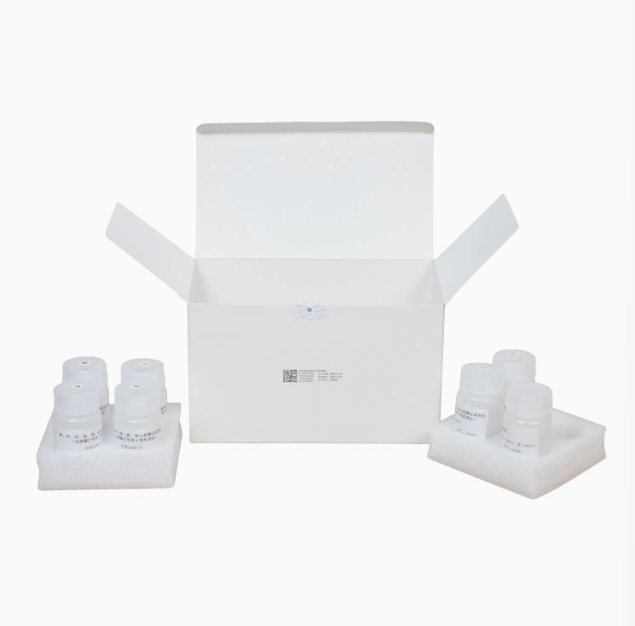

The trace element analyzer utilizes Inductively Coupled Plasma Mass Spectrometry (ICP-MS) technology. When used with proprietary reagents, it enables quantitative detection of multiple elements in whole blood, serum, and urine.

Key Features

Wide Application: Supports measurement of multiple specimen types including whole blood, serum, urine, and breast milk.
High Throughput: Requires minimal sample volume and can simultaneously detect dozens of elements in a single run.
Distinctive Design: Optional nickel and platinum tri-cone ion extraction system; 90° quadrupole deflection system prevents direct alignment of the analyzer and detector with the plasma beam, enhancing stability.
Interference Removal: Octopole collision cell combined with kinetic energy discrimination effectively eliminates polyatomic ion interferences.
User-Friendly Operation: Optional fully automated sample pretreatment system enables fully automated loading and detection from primary sample tubes.
Intuitive Software: Simplifies routine high-throughput analysis, providing all necessary functions and versatility. Equipped with built-in mature analytical methods for immediate use.

P

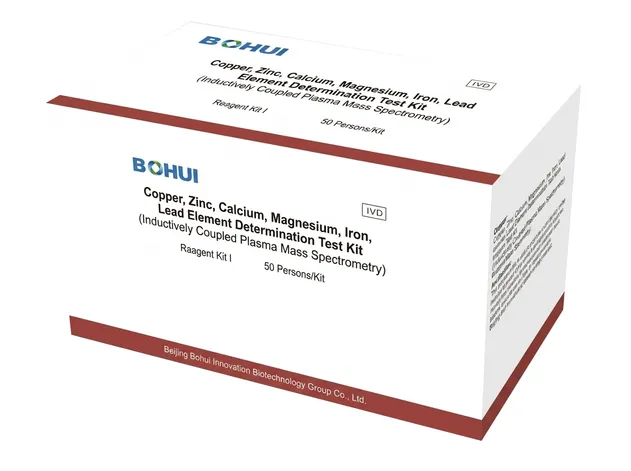

Product Range

C

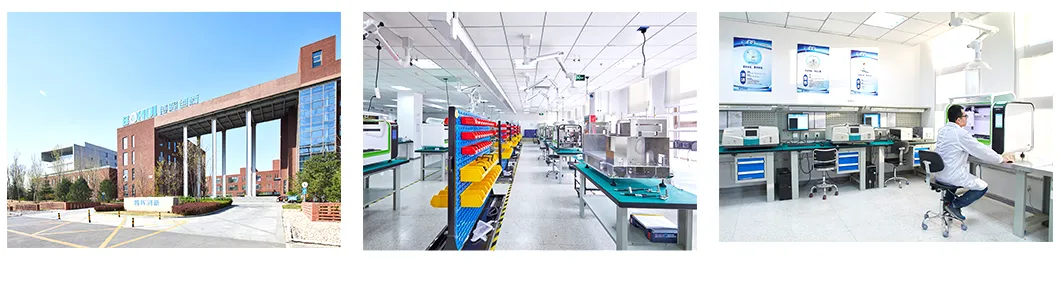

R&D and Production

This high-tech biomedical enterprise integrates R&D, production, sales, and after-sales service. With a massive integrated R&D center, the group has evolved into a leader in the biomedical field and is listed on the Stock Exchange.

In the field of inspection and testing, the group possesses strong independent R&D capabilities. Fully automated nucleic acid detection products based on microfluidic technology are acclaimed as a "laboratory on a chip". Efforts are concentrated on the application of mass spectrometry analysis within the life sciences sector, offering customers outstanding products and exceptional user experience.
