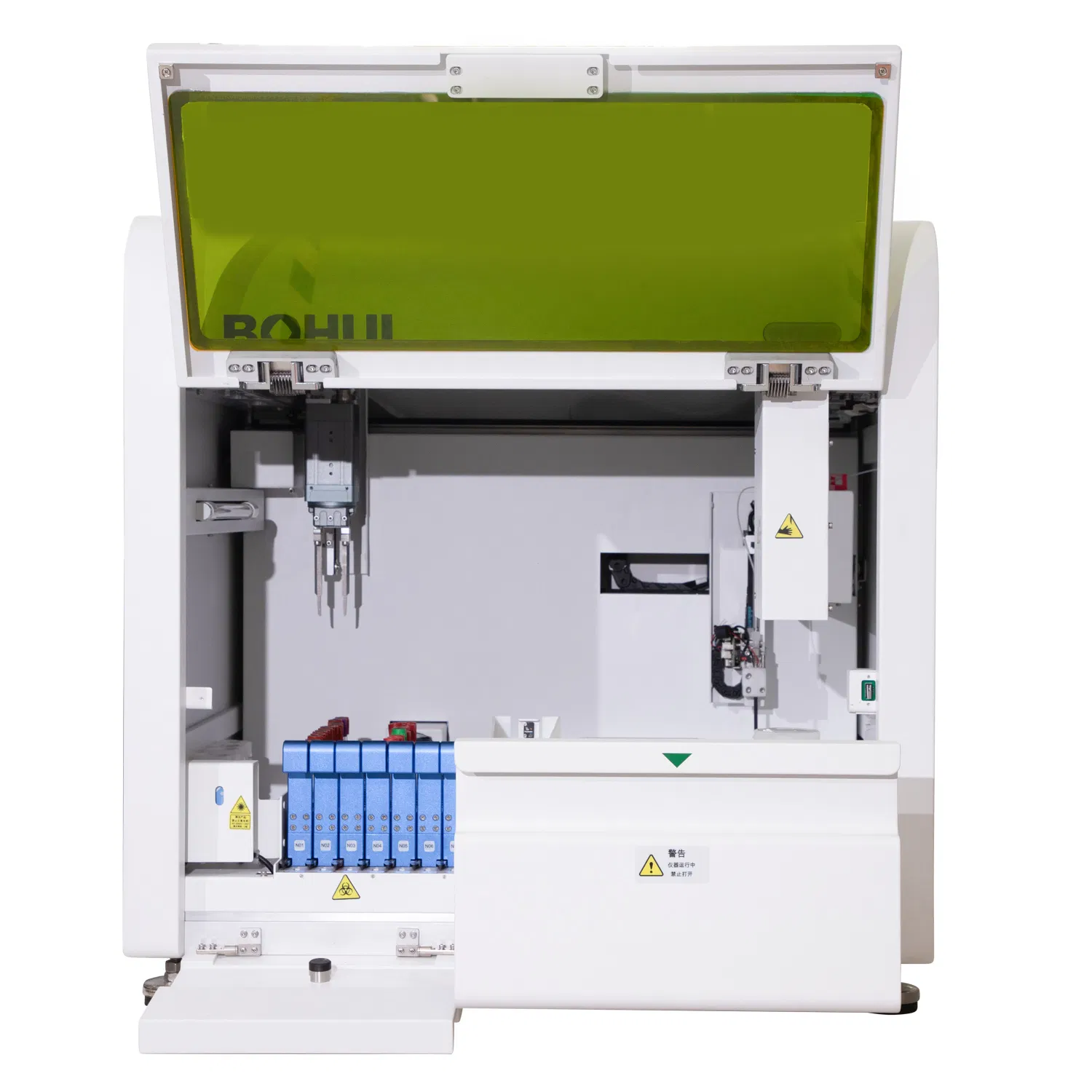

Pediatric Nutrition & Heavy Metal Icp-Ms for Healthy Development

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Trace Element Analyzer

Product Description

Basic Specifications

Certification
ISO13485, Nmpa
Weight
115kg
Detection Limit
Ppt Level
Detection Deviation
≤5%
Real-Time Detection
1.5 Mins/Test
Interface
USB
Repeatability
≤10%
Correlation Coefficient
R≥0.995
Power Supply
Voltage: 220V; Frequency: 50Hz
Operating Temperature
(15-30)℃
Specification
920mm x 660mm x 700mm
Origin
Beijing, China

Technology Overview

The trace element analyzer is based on Inductively Coupled Plasma Mass Spectrometry (ICP-MS) technology. It utilizes a high-frequency radio frequency (RF) signal to generate a high-temperature plasma that ionizes the analytes. The mass spectrometer then detects the ions' mass-to-charge ratio and intensity, enabling the quantification of elemental concentrations in the sample.

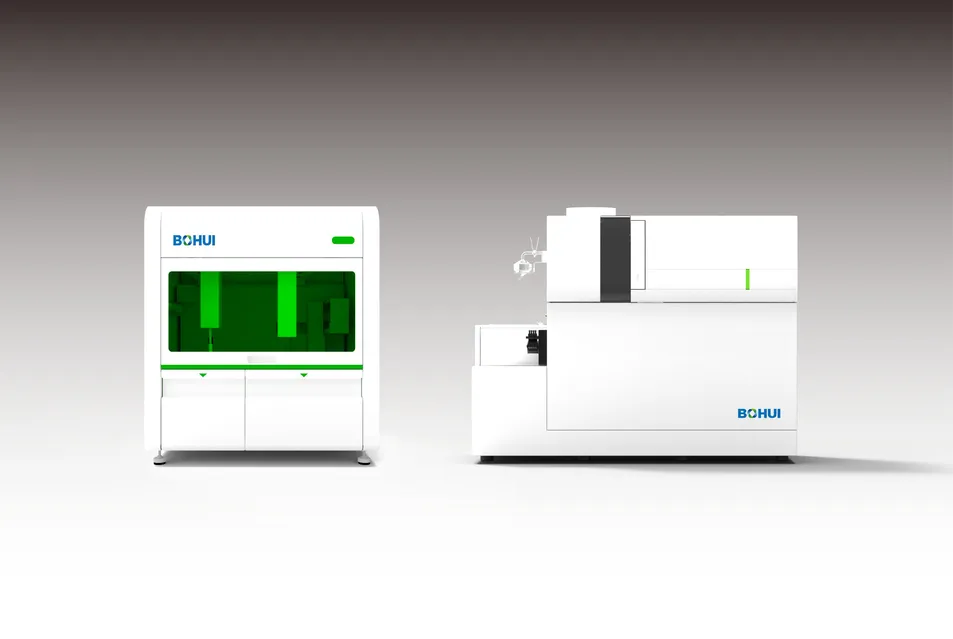

Trace Element Analyzer Unit

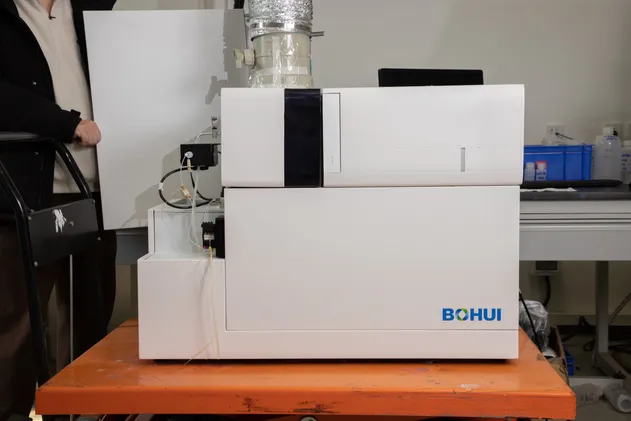

Laboratory System

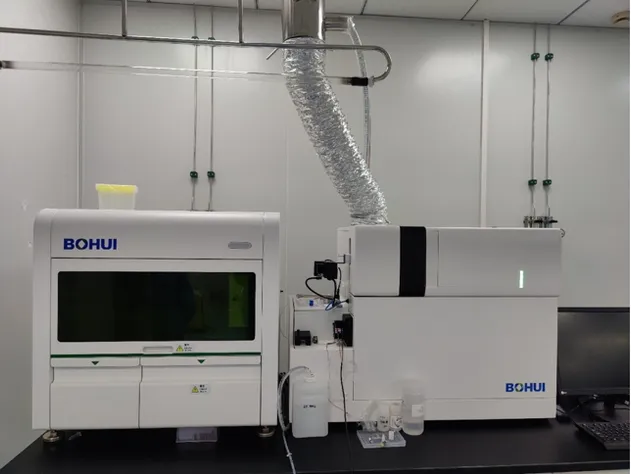

ICP-MS Detail

Trace Element Analyzer BH MS-ICP1000/2000 provides quantitative detection of multiple elements in whole blood, serum, and urine. It is widely used to identify essential element deficiencies, assess nutritional status, and monitor development in children.

Technical Specifications

ModelBH MS-ICP1000/2000
Detection MethodICP-MS
Elements DetectedCopper, Zinc, Calcium, Magnesium, Iron, Lead, etc.
Detection Time1-2 minutes per sample
Detection Limitppt level
Operating Humidity10-60%

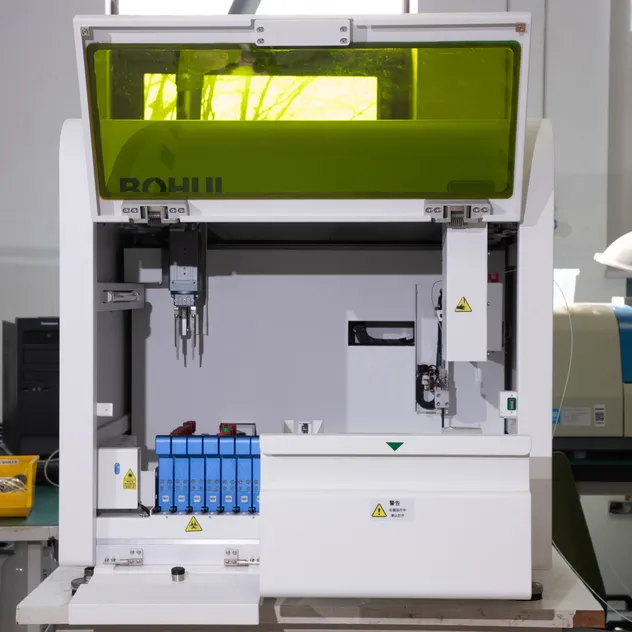

Technical Layout

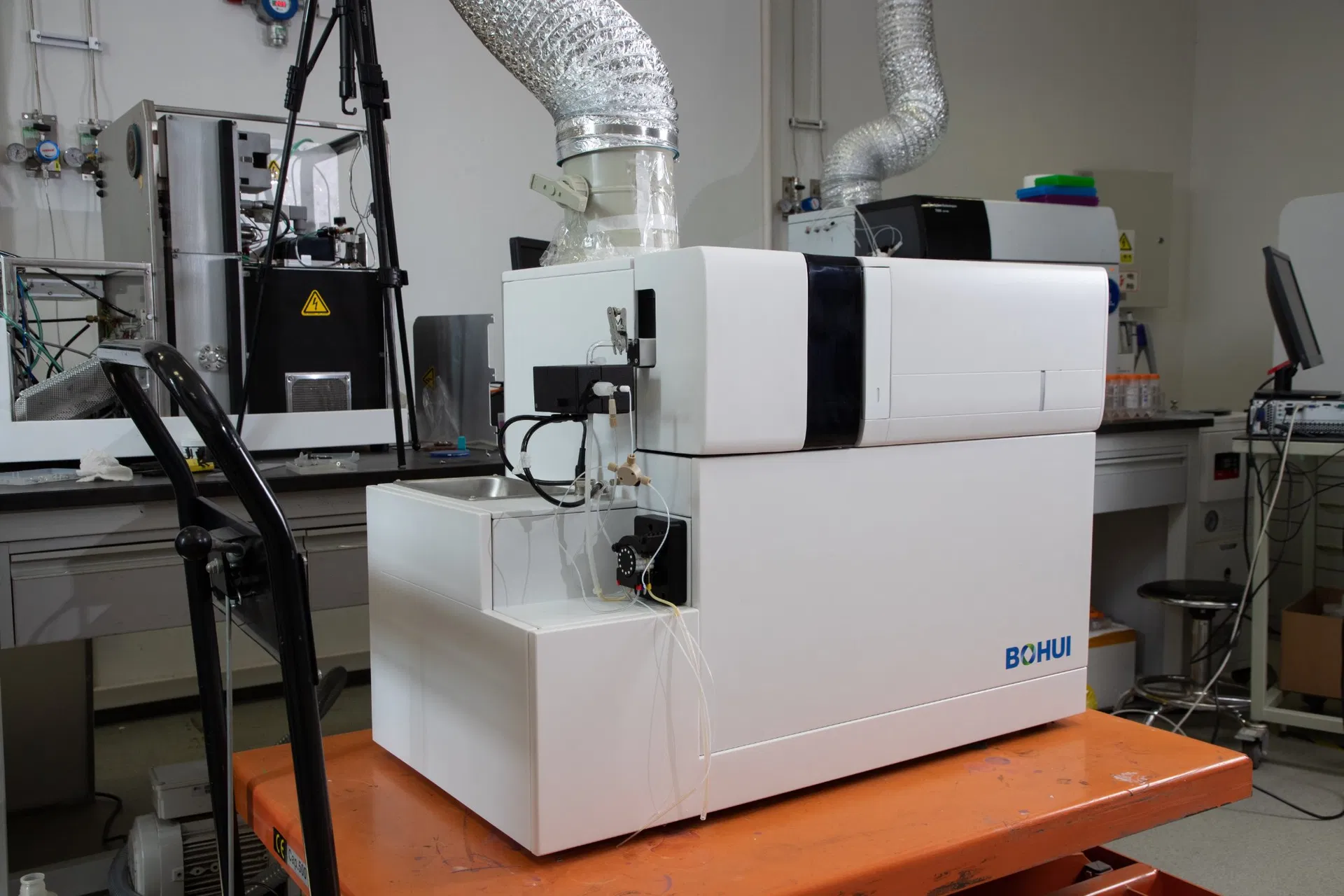

Analysis Workflow

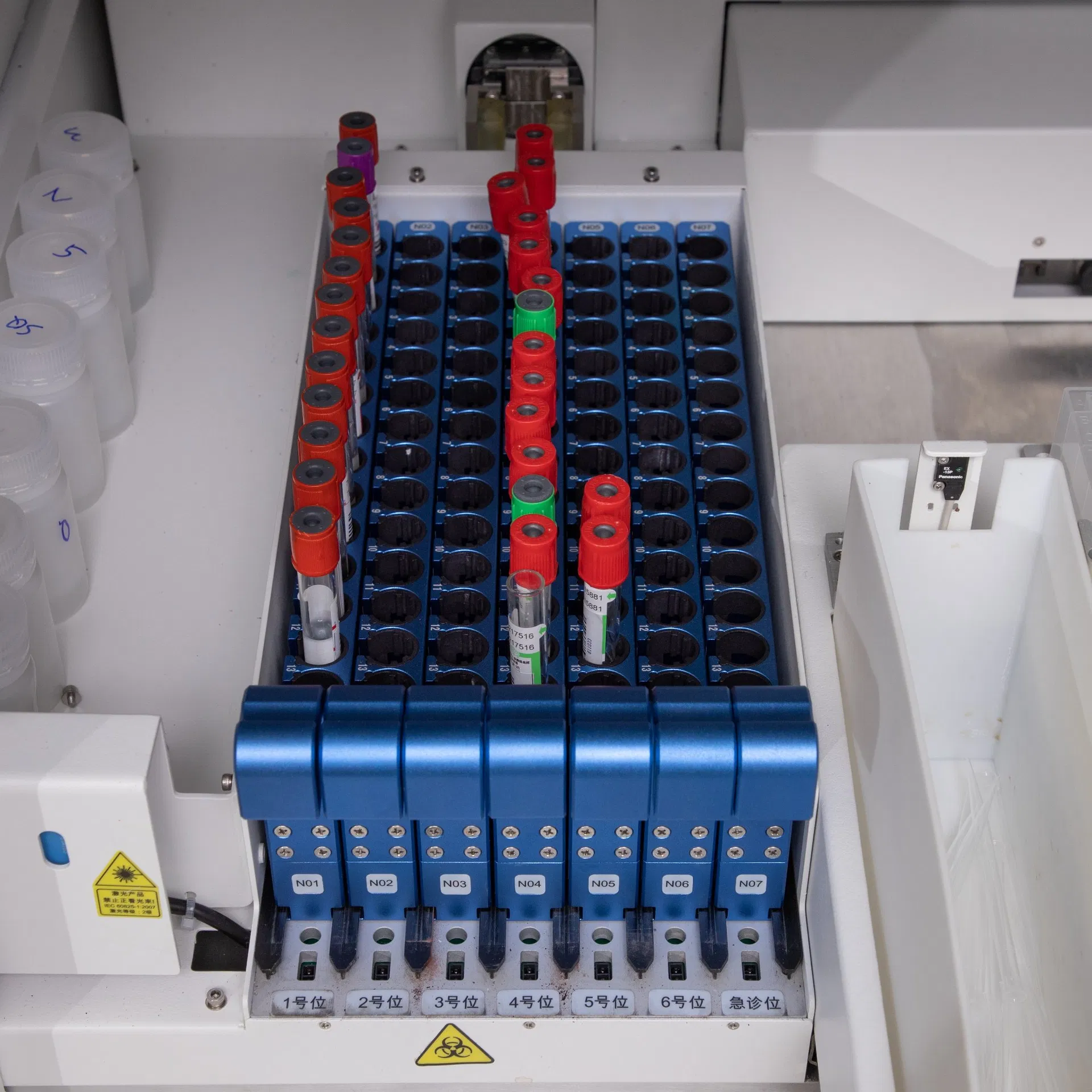

Detection Precision

Product Features

Broad Application Supports measurement of multiple specimen types including whole blood, serum, urine, and breast milk.
Rapid Detection Requires minimal sample volume and can simultaneously detect dozens of elements in a single run.
Easy Operation Optional nickel and platinum tri-cone ion extraction system with a 90° quadrupole deflection system for enhanced stability.
Enhanced Safety Octopole collision cell combined with kinetic energy discrimination effectively eliminates polyatomic ion interferences.

Group Profile

Founded in 2001, the group has evolved into a high-tech biomedical enterprise integrating R&D, production, sales, and service. With a 40,000-square-meter integrated R&D center, the company has established technical platforms in molecular diagnosis, immunoassay, atomic absorption, and mass spectrometry.

Facility Overview

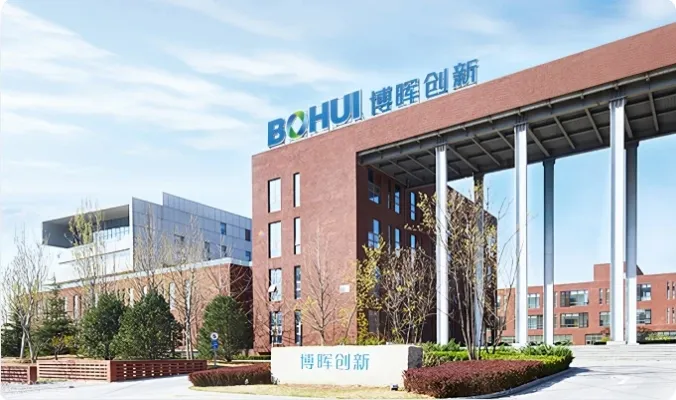

R&D Center

Frequently Asked Questions

Can I obtain samples for testing?
Yes, samples can be provided upon request.
Do you support OEM/ODM services?
Currently, we do not support custom logo or design services on the products.
Where is the manufacturing facility located?
Our professional manufacturing factory is located in Beijing, China. Visitors are welcome.
What is the monthly production capacity?
Our capacity is approximately 2,000 analyzer units and 1 million person-time reagents per month.
What is the estimated shipping time?
Most products are kept in stock and are typically shipped within 7 days.
What sample types can be analyzed?
The system is designed for whole blood, serum, urine, and breast milk samples.
